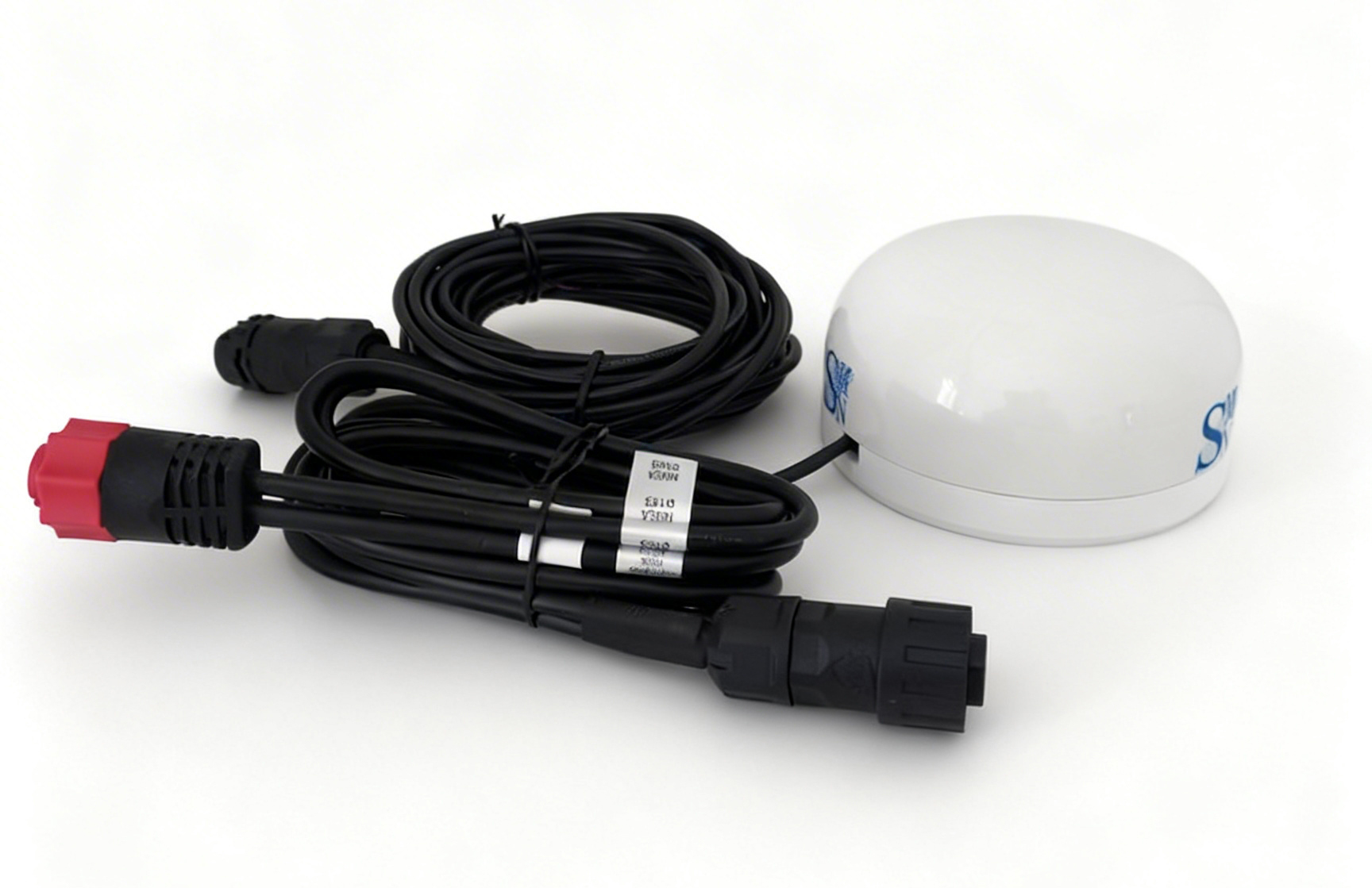

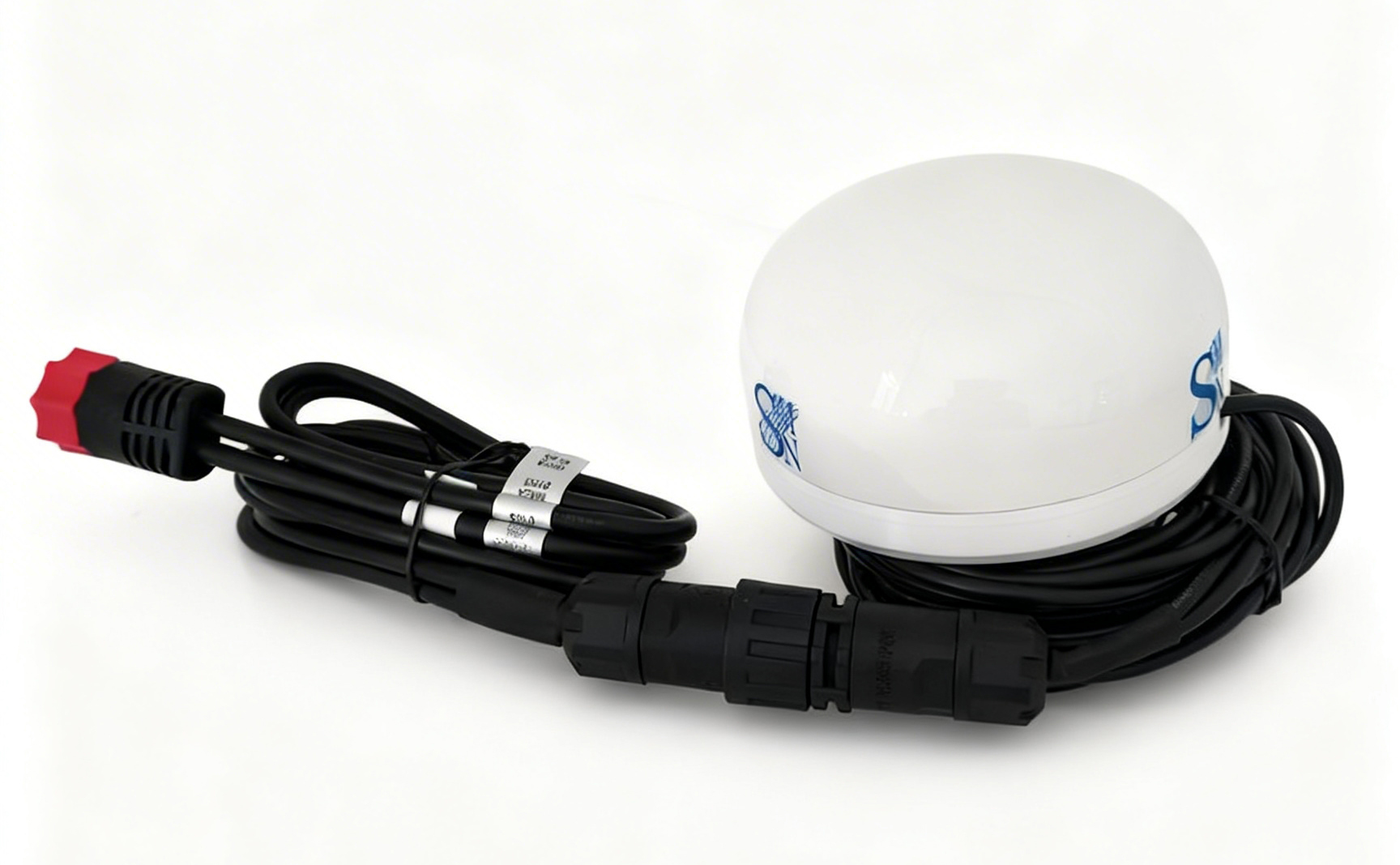

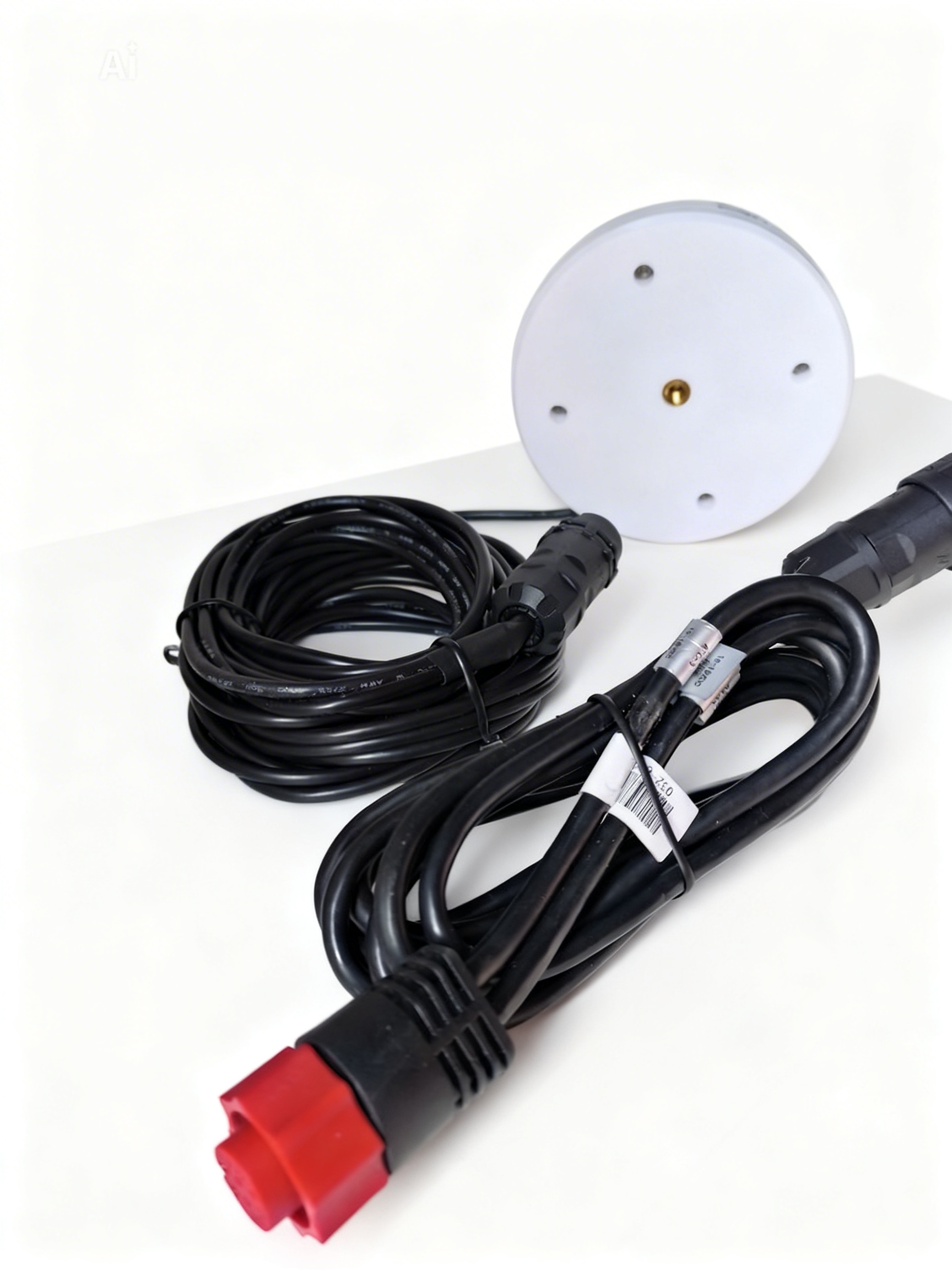

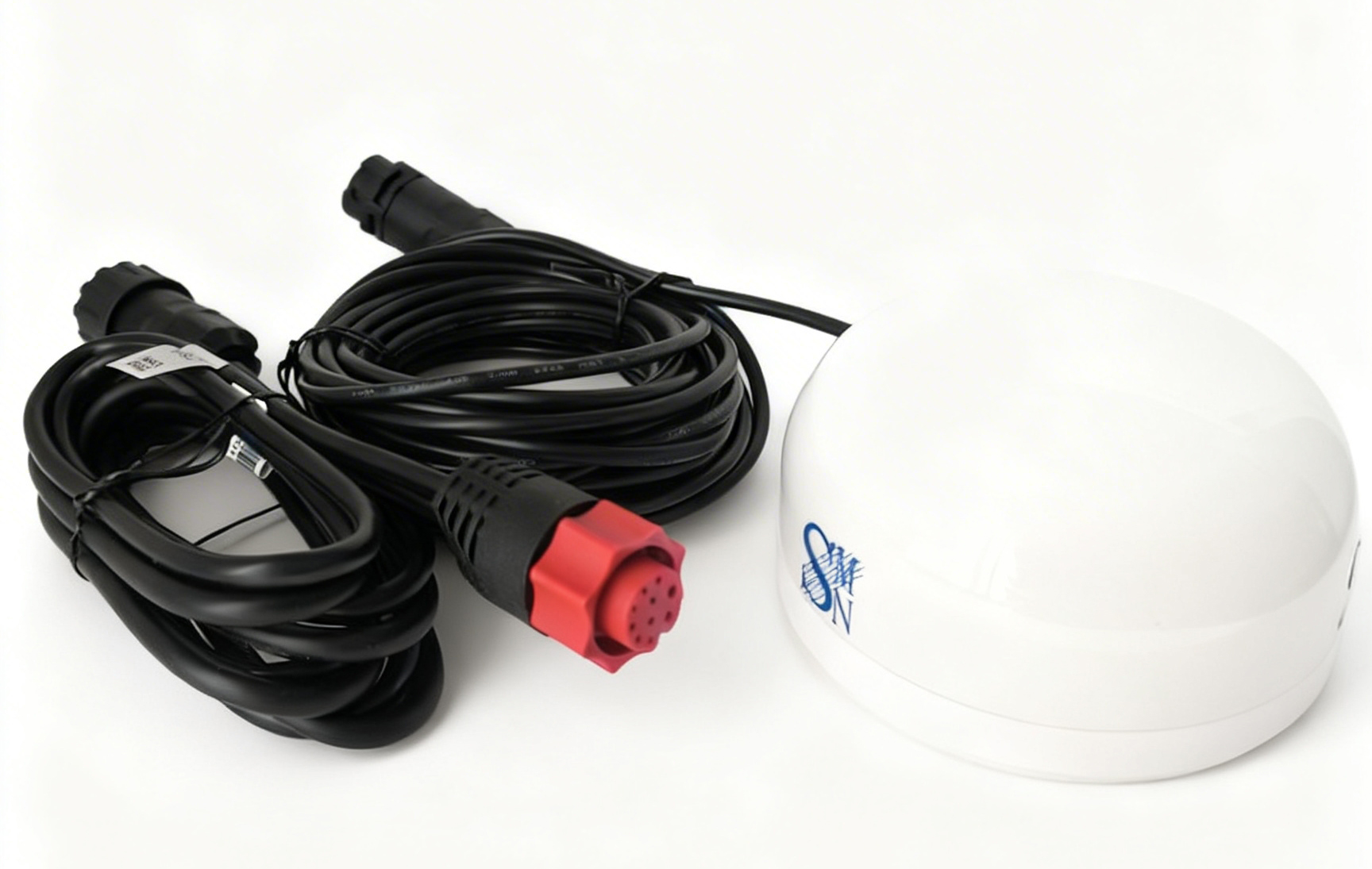

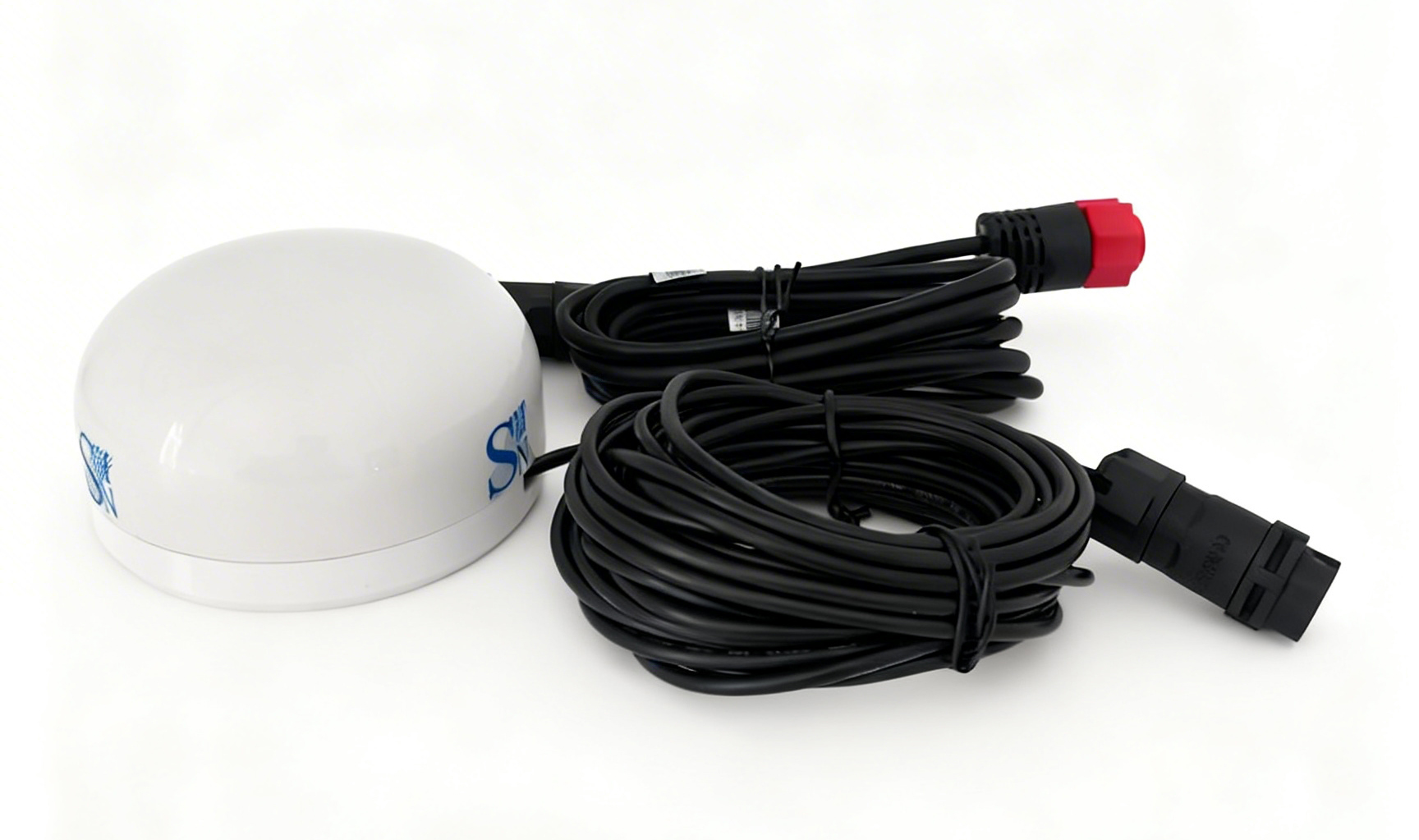

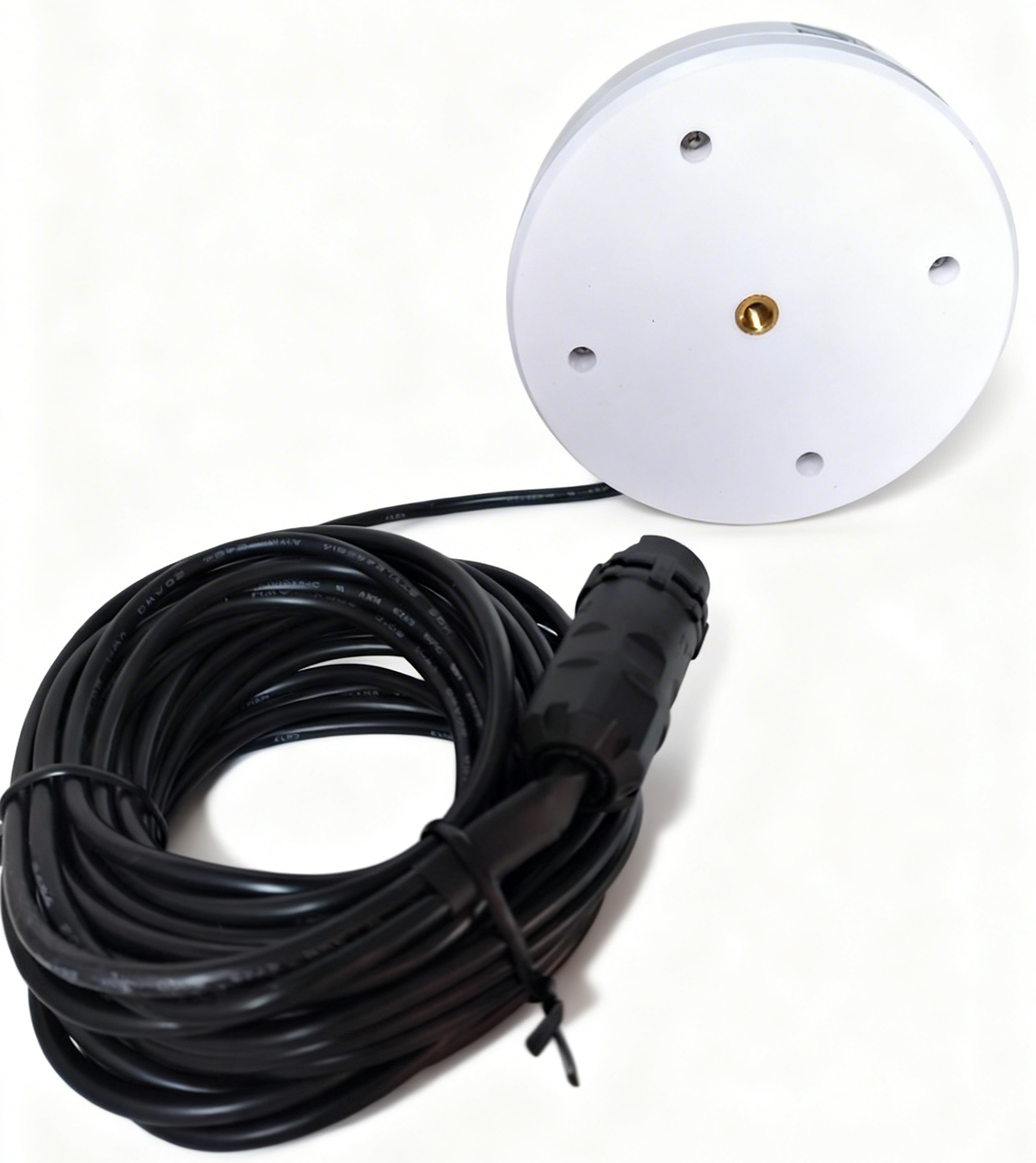

The AG Point 2 SMN is a GPS receiver antenna manufactured to IPX7 weatherproof standards for outdoor installation. It can be mounted on the roof or anywhere else that offers clear reception using a base or bracket with a 6 mm thread. It includes a 5-meter cable with a pre-installed quick connector and an original HDS power cable. It is powered directly at 12 V with low consumption and transmits NMEA0183 signals at RS-422 level.
Main features
Supply voltage: 10~32 V (minimum~maximum)
Power consumption: 26 mA at 12 V
Output protocol: NMEA0183
Output level: RS-422 (0/5 v)
Output commands: GGA, RMC, GSV, GSA
Cable: 5 m shielded
Water resistance: IPX7
Sensitivity: -159 dBm
Dimensions: Ø 103 mm ↕89 mm with bracket
Weight: 350 g (antenna, adapter, and cable)
Satellites: 20 parallel channels
